10 head weigher package machine

Online Inquiry

Multifunctional weighing packing machine / 10 head weigher package machine

1.This kind package machine can pack different kinds Powder ,granule,grain,dry plants ,etc

2.There is 10 head weigher to weigh the product and the accuracy is very accurate.

3.If you want to mixer your product then pack in bags ,this package is very suitable .we can design a production line for you

4.All the machine is made of Stainless steel which can reach food factory requirements

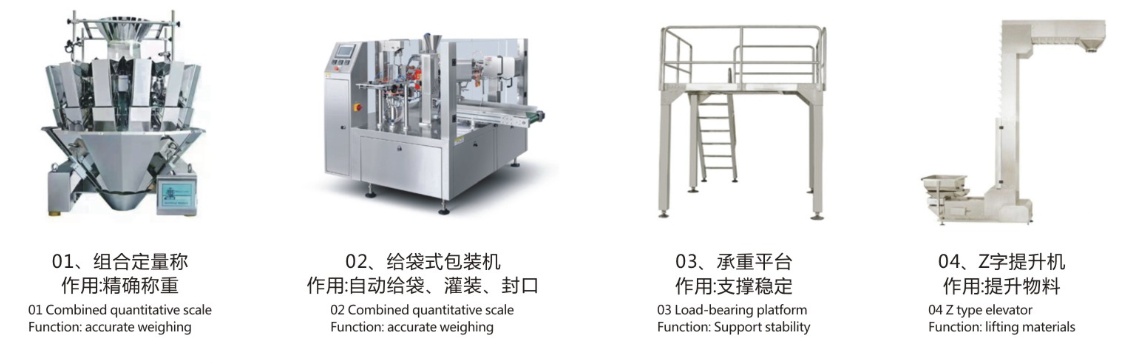

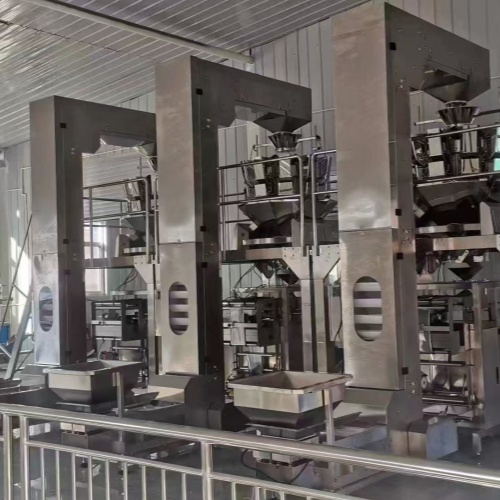

10 head weigher is widely used in different packing line

If you have a certain understanding of packaging machines , from the main , you will that 10 head weigher can work with packing machine and bag feeder machine

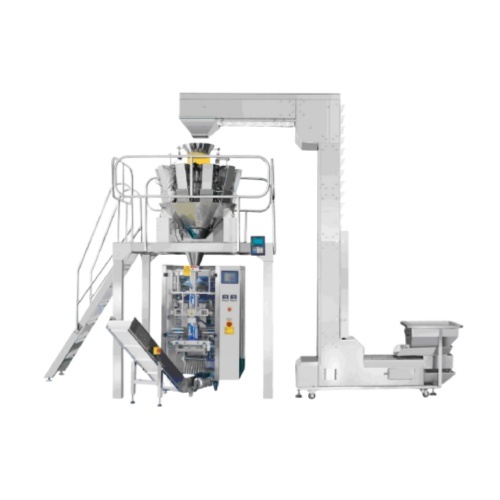

First type , 10 head weigher with bag forming machine

If your packing raw material is film , The 10 head weigher need work with the bag forming machine

The machine model depends on your film width . The film wider the machine will be bigger .

Model	420	520
Max film width	420mm	520mm
Bag Size	W 80-200MM L 60-300MM	W 80-250MM L 80-390MM
Package range	10-500G	10-1000G
Package speed	5-30bag/minute	5-25bag/minute
Voltage/power	220V/2.4KW	220V/2.4KW
Gas comsumption	0.6m³/min	0.6m³/min
Package raw materisl	opp/cpp/ce mst/pet/pe/0.04-0.08m	opp/cpp/ce mst/pet/pe/0.04-0.08m

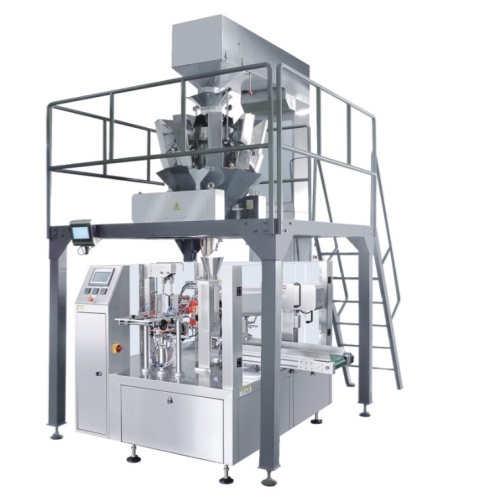

If you have bag already , you need 10 head weigher to weigh then fill the raw material in your bags
You should need use the 10 head weigher with bag feeder

Model	230	260	300
Prefabricated bags size	W90-230 L90-350	W40-260 L100-350	W200-300 L150-400
Package speed	25-50bag/min	15-50bag/min	10-35bag/min
Package range	10-500g	10-1000g	10-2500g

Stranrd 8 stations

1.Bagging 2.Coding 3.Opening 4.Falling material 5.Reservation 6.Reservation 7.Heating sealing 8.Shaping and output

Optional equipment

1.Horizontal bagging 2.Zipper opening 3.Bottom bagging 4.Bottom vibration 5.dust removal 6.zipper closing 7.nitrogen filling ,etc
