Products >> Packing machine >>

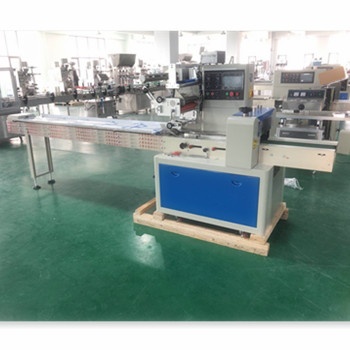

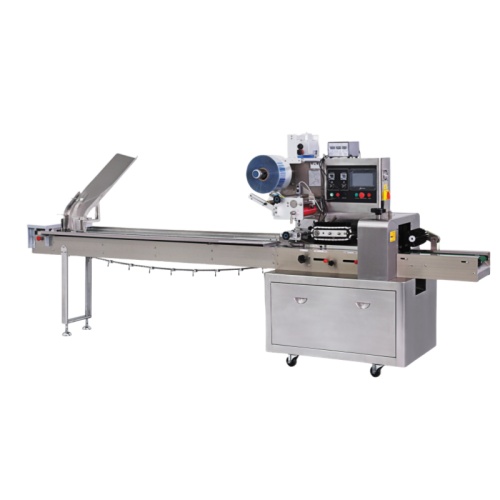

Pillow type packing machine
Pillow type snack packing machine Suitable for the pharmaceutical industry, daily necessities, disposable items, hardware products, plastic products, toys, stationery, industrial supplies, industrial parts, automotive parts, biscuits, vegetables, fruits, etc and can use different packing material like BOPP/CPP,PET/AL/PE etc.
Machine feathers
1. Dual motor frequency converter/PLC control /sets bag length as needed
2. Human machine interface, convenient and fast parameter setting, with fault self-diagnosis function, making faults clear at a glance

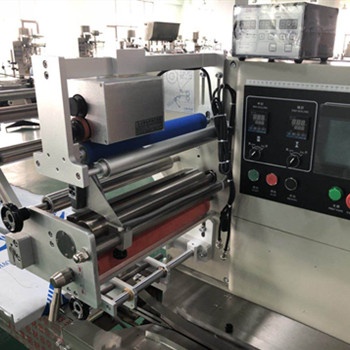

3. High sensitivity photoelectric eye color tracking, digital input of sealing position, making the sealing position more accurate
4. Independent temperature control, better suited for various packaging materials
5. The positioning and shutdown function does not stick to the knife and does not waste the film
6. The transmission system is simple and maintenance is more convenient
Technical data
Model |
TH-250 |
TH320 |
TH350 |
TH400 |
TH450 |
TH600 |
Film width |
Max250 |
Max320 |
Max350 |
Max400 |
Max450 |
Max600 |
Bag length |
65-190/120-280/90-220/150-330 |
130-320 |
120-450 |
120-450 |
||
Bag width |
30-110 |
30-110 |
50-160 |
50-170 |
80-220 |
100-270 |
Product height |
Max55 |
Max55 |
Max60 |
Max60 |
Max80 |
Max80 |
Film roll diameter |
Max350 |
|||||
Package speed |
40-230 |
40-230 |
40-230 |
40-180 |
40-80 |
20-80 |
Power needed |
220V 2.4kw |
220V 2.8kw |
220V 3.2kw |

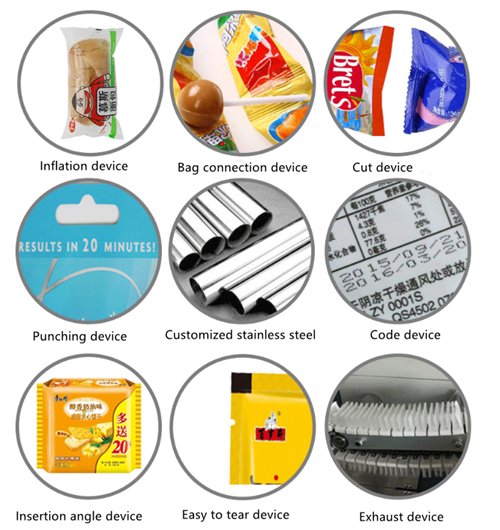

Optional device:
Coding machine (printing date) inflation device (nitrogen filling) packaging device
Alcohol spraying device (disinfection), punching device, deoxidizer device, exhaust device, touch screen
If your material is square or circular, you can also choose a packaging machine with loading function
If you still have questions after check the above information please send inquiry to us directly and our sales manager will choose suitable machine for you .
During choosing machine process
There are some customers may say " I just need the machine please send us price "
We understand their desire to quickly obtain the machine , but we need know what you exactly need .
Firstly , for the machine capacity
some customers' capacity is small and they need normal speed is all right
the other customers' capacity is big so the fast speed machine is suitable to him
Second
If what you most want to solve is labor costs, you need fully automatic machine
For the pillow type packing machine. if you want to save labor , you can choose the pillow type packing machine with disc feeder .
Automatic feeding non fragile products , if you interested please contact with us to get more information
If you just need a packing machine , and put the product on the machine by hand , that also fine
Third
If your product easy to broken during package , you need send some sample to us to confirm and adjust the machine configuration .
Forth
What is the Min length and Max length ? what is your max film width ? what is your product max height ?
the above information Determine the size of the machine
......The above information is the most fundamental influencing factors
When our sales manager recommend machine , they need know exactly what you need .What kind of machine is the best for you and the most valuable for your work
Good communication is the foundation for choosing the right machine
